Mounting options for CFAL12864N-A-B1?


New member
Howdy Y'All,

I am interested in using the CFAL12864N-A-B1 in a new embedded project.

I am hoping to attach it directly to my PCB but I don't see any convenient method of doing this. I don't see any alignment pins that would go through a hole in the board.

How do you guys suggest mounting this thing? Sticky tape?

Before I proceed, could someone give me guidance on how to physically mount this display?

Thank you kindly!
Looking for additional LCD resources? Check out our LCD blog for the latest developments in LCD technology.

CF Tech

Typically it pushes into a "picture frame" style recess around the opening in the front panel.

There is no trouble mounting it with a double-sided adhesive tape to the PCB. There are some industrial products made by 3M that are really good.

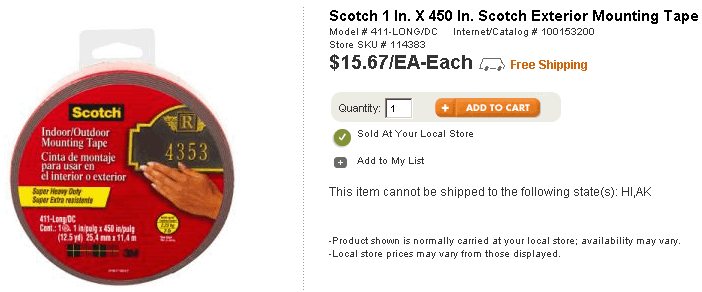

This "home" 3M product from Home Depot:

is pretty good. Sticky and tough . . . you only get one chance :)
