Help on an OEM lcd module

madangrysnake

New member

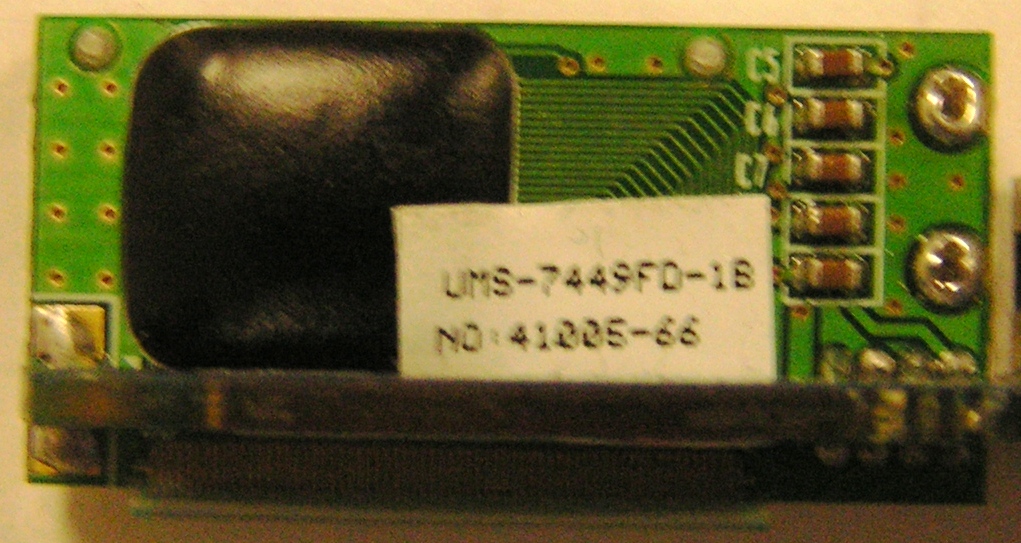

I need help finding out about UMS-744FD-1B. I need to find the manufacturer and the spec sheets for it. Any help will be great.

Thanks
Looking for additional LCD resources? Check out our LCD blog for the latest developments in LCD technology.


CF Tech

Administrator
The number does not google, so please see if you can post some clear, high resolution pics of the front and back.

Also, do you know if it is graphic or character? Do you know the resolution?


gyro_john

New member
I can identify manufacturer of this LCD.

Greetings a few years later,

I have just butchered an old Xerox inkjet printer, and my LCD module has part number UMSH-3061ANV-W. This one has 10 connections: contrast, +5V, 2 grounds and 6 data pins so presumably it is parallel 4-bit data. Each of the 6 data pins is buffered through one gate of a 74HCT04 hex inverter so they are all inputs only.

I am trying to find docs on it so I can use it, and so far I have dug up the following:

- The manufacturer is U.R.T. - that's United Radiant Technology Corp in Taiwan.
- The info on how to use this is not exactly falling into my lap. The manufacturer's web site lists what controller chip(s) they used in a bunch of similar displays, but no other help yet.
- here's the manufacturer's web page with info on what the part numbers mean. Based on the similarity of part numbers, yours appears to be a graphic module, while mine is a 20 x 2 array of 5 x 8 dot matrix characters.

http://www.urt.com.tw/us/product_liquid_tnstn.htm

You will see that they used a bunch of different controller chips (20!). I have made an alphabetical list:

HCD4478UA00
KS0065BP-CC
KS0066
KS0066BP-00CC
KSC063BP/KSC066
KSC065/KSC066
KS0071P-00CC
NT7603H-BDT01
NT7605N-BDT01
S6A0069X01-COCX
S6A2067X01-COCX
SPLC063A1-C
SPLC100A2-C
SPLC780A1-01C-C
SPLC780C-01C
SPLC780C-03A-C
SPLC780C-0101C
ST7066U-0B
S6A0065B01-COCX
S6A2067X01-COCX

Regards from gyro_john
Saskatoon, SK
Canada

Last edited:

CF Tech

Administrator
A lot of those part numbers are "HD44780 Compatible". I would bet that a standard HD44780 library would work, if you can figure out the data pins.
